Designing PIC-X: Token Types and JWTs

PIC Profile 0.2 defines centralized PIC-X-mediated continuity advancement.

The active PIC profile is:

https://pic-protocol.org/profiles/0.2

This article defines the canonical JSON/JWT representation for that profile.

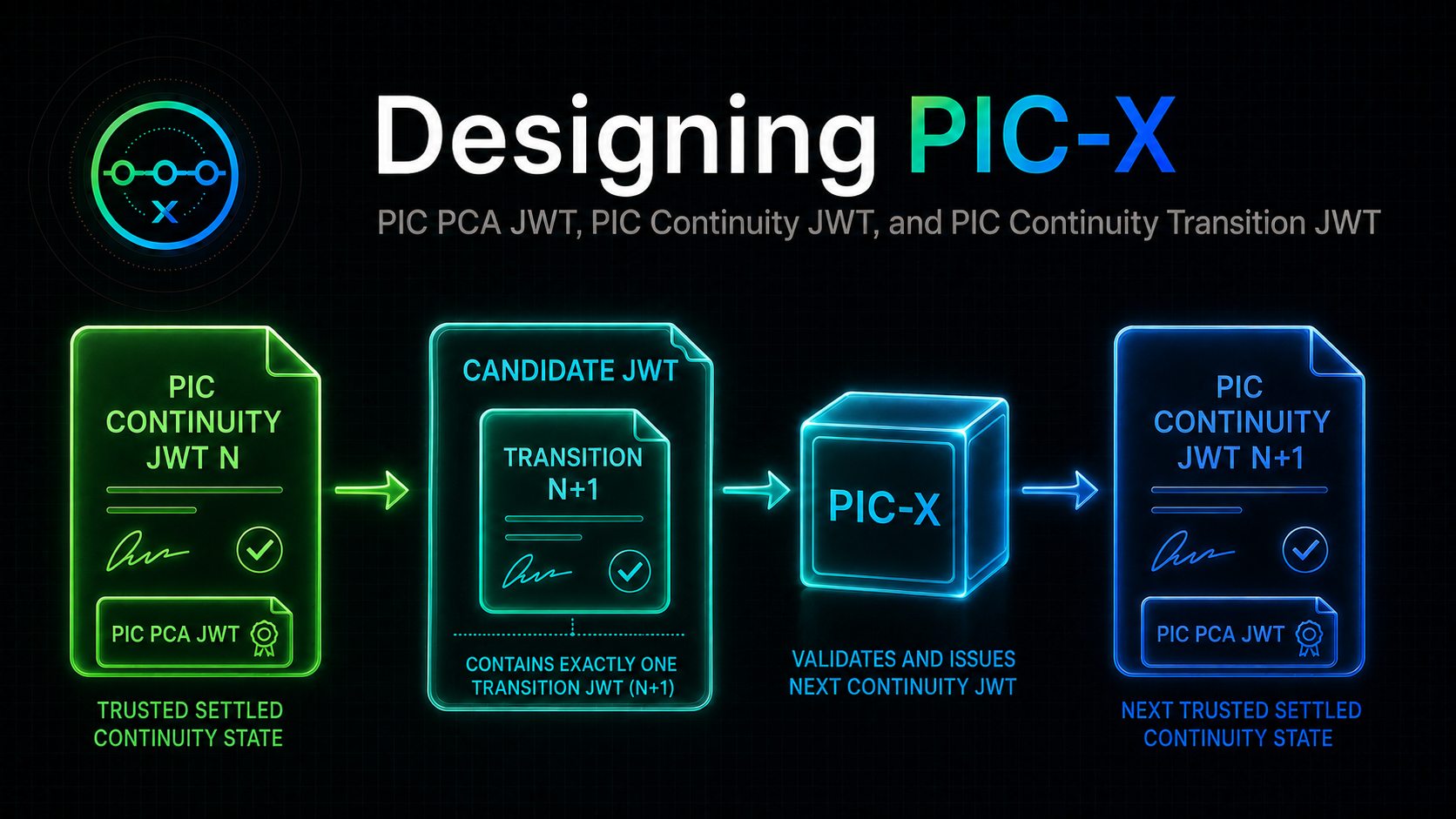

trusted PIC Continuity JWT N
        |
        | workload proposes exactly one advancement
        v
workload-signed candidate PIC Continuity JWT
with one PIC Continuity Transition JWT N+1
        |
        | OAuth Token Exchange / PIC-X exchange
        v
PIC-X validates the single proposed transition
        |
        v
PIC Continuity JWT N+1
issued by PIC-X
with no pending transition

A PCA is the logical Context of Authority.

A PIC PCA JWT is the trusted signed root authority representation.

A PIC Continuity JWT is the signed continuity artifact. When issued by PIC-X, it is the trusted settled continuity artifact. When produced by a workload for advancement, it is a signed candidate containing exactly one proposed PIC Continuity Transition JWT.

A PIC Continuity Transition JWT is one signed proposed causal advancement from the currently trusted PIC Continuity JWT to the next state.

PIC Profile 0.2 defines only centralized PIC-X-mediated continuity advancement.

PIC Artifact Registry

PIC currently defines three JWT artifacts and two Continuity Proposal type identifiers used by the PIC Token Exchange Profile.

Definition URIs are stable semantic protocol identifiers. They identify protocol concepts and are not required to resolve to a retrievable web resource.

This registry maps the identifiers advertised by .well-known/pic-x-configuration to the protocol artifacts defined in this article.

When proposal JSON is transported to PIC-X, it uses the continuity_proposal parameter as compact UTF-8 JSON encoded with unpadded Base64url.

JWT Serialization

PIC Profile 0.2 transports and embeds signed JWT artifacts using compact JWS serialization.

Unless a future profile explicitly defines another serialization, fields ending in _jwt carry the compact signed JWT string.

This applies to:

context_of_authority.root.pca_jwt
continuity_transition_jwt

Artifact hashes over JWT values are computed over the UTF-8 bytes of the compact serialized JWT, not over the decoded JSON view.

For example:

context_of_authority.root.pca_jwt_hash = hash(compact context_of_authority.root.pca_jwt)

When a transition artifact is hashed, the same rule applies:

hash(compact continuity_transition_jwt)

The JSON examples in this article are decoded views shown for readability. They are not the normative wire representation.

The profile does not forbid other serializations in future versions. It only makes compact JWS the normative serialization for PIC Profile 0.2. A future profile may define a JSON-based serialization, but that profile must also define how signatures are verified, how hashes are computed, and how embedded artifacts are represented.

Logical and Canonical Authority

The Logical Context of Authority is application-facing.

{
  "principal": {
    "id": "user-123",
    "roles": [
      "payment-approver"
    ],
    "groups": [
      "finance"
    ]
  },
  "attributes": {
    "department": "finance",
    "region": "EU"
  },
  "execution": {
    "invariants": [
      {
        "scope": "payments:read",
        "operation": "read",
        "resourceType": "payments",
        "resourceId": "*"
      },
      {
        "scope": "payments:approve",
        "operation": "approve",
        "resourceType": "payments",
        "resourceId": "*"
      }
    ],
    "contract": {
      "purpose": "payment-approval",
      "currency": "EUR",
      "departments": [
        "finance"
      ]
    }
  }
}

For signing and hashing, the Logical Context of Authority is transformed into a canonical authority representation according to the selected profile. In PIC Profile 0.2, the PIC PCA JWT context_of_authority contains an Indexed Authority Map, not the normalized Logical Context of Authority directly.

Logical Context of Authority
        |
        v
canonicalization / denormalization
        |
        v
Indexed Authority Map
        |
        v
PIC PCA JWT

Profile 0.2 uses section-local numeric indexes starting at 0. Initial index assignment is deterministic and is separate from canonical serialization of an already indexed map. Implementations first denormalize the Logical Context of Authority into canonical tuple candidates, sort those candidates within each section, then assign section-local indexes 0, 1, 2, and so on.

For principal, attributes, and execution_contract, each indexed entry is [key, value]. For invariants, each indexed entry is [scope, operation, resourceType, resourceId].

For initial index assignment, principal, attributes, and execution_contract candidates are sorted lexicographically by canonical key, using Unicode code point order. Collection memberships are denormalized before sorting; each member becomes its own [key, true] tuple, and the final canonical membership key determines its position. Presence with true represents membership; Profile 0.2 defines no false-valued membership semantics.

For invariants, candidates are sorted lexicographically by tuple elements in this order: scope, operation, resourceType, resourceId, using Unicode code point order for each element.

The identity addressed by removal bitmaps is (section, numeric index), for example principal/0 or invariants/1; JSON object member order has no protocol meaning.

{
  "format": "indexed-authority-map",
  "value": {
    "principal": {
      "0": ["groups:finance", true],
      "1": ["id", "user-123"],
      "2": ["roles:payment-approver", true]
    },
    "attributes": {
      "0": ["department", "finance"],
      "1": ["region", "EU"]
    },
    "invariants": {
      "0": ["payments:approve", "approve", "payments", "*"],
      "1": ["payments:read", "read", "payments", "*"]
    },
    "execution_contract": {
      "0": ["currency", "EUR"],
      "1": ["departments:finance", true],
      "2": ["purpose", "payment-approval"]
    }
  }
}

Logical execution.contract maps to the flattened canonical execution_contract section.

principal, attributes, invariants, and execution_contract are all indexed and canonicalized. Indexing does not mean all sections use removal attenuation.

Scalar logical values become one indexed entry. Set or list membership is denormalized so that each member becomes its own indexed boolean entry.

Artifact identity and authority-state identity are different domains.

hash(compact JWT artifact)
→ cryptographic identity of the signed artifact

hash(canonical/materialized authority state)
→ conceptual, profile-dependent identity of the resulting authority state

They are not directly comparable.

Profile 0.2 defines the deterministic canonical structure and ordering of the materialized Indexed Authority Map: sections are ordered as principal, attributes, invariants, then execution_contract, and entries within each section are ordered by ascending numeric index. JSON object member order has no semantic meaning.

An interoperable cryptographic hash over the materialized authority state requires the selected profile/schema to define the exact byte serialization used as hash input. This article does not define that byte-level encoding.

PIC PCA JWT

Definition URI

None

The current protocol does not define a Definition URI for PIC PCA JWT. PIC PCA JWT is currently identified by Media Type and JOSE typ.

Media Type

application/pic-pca+jwt

JOSE typ

pic-pca+jwt

Purpose

trusted signed root authority representation

The PIC PCA JWT is signed by a trusted authority.

The root PIC PCA JWT carries the root challenge used to initialize the first future continuity transition.

Decoded PIC PCA JWT example, shown for readability

{
  "header": {
    "typ": "pic-pca+jwt",
    "alg": "ES256",
    "kid": "pic-x-es256-2026-08"
  },
  "payload": {
    "iss": "http://127.0.0.1:5556/pic-x",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "sub": "user-123",
    "iat": 1786484000,
    "jti": "urn:uuid:pca-root-0",
    "position": 0,

    "context_of_authority": {
      "format": "indexed-authority-map",
      "value": {
        "principal": {
          "0": ["groups:finance", true],
          "1": ["id", "user-123"],
          "2": ["roles:payment-approver", true]
        },
        "attributes": {
          "0": ["department", "finance"],
          "1": ["region", "EU"]
        },
        "invariants": {
          "0": ["payments:approve", "approve", "payments", "*"],
          "1": ["payments:read", "read", "payments", "*"]
        },
        "execution_contract": {
          "0": ["currency", "EUR"],
          "1": ["departments:finance", true],
          "2": ["purpose", "payment-approval"]
        }
      }
    },

    "challenge": {
      "next_challenge": "base64url-random-root"
    }
  },
  "signature": "base64url-signature"
}

jti identifies a JWT instance, while position identifies its place in continuity. Cryptographic artifact identity is established by the corresponding signed-artifact hash.

PIC Continuity JWT

Definition URI

https://pic-protocol.org/definitions/token-types/continuity

Media Type

application/pic-continuity+jwt

JOSE typ

pic-continuity+jwt

Purpose

signed continuity artifact

PIC Profile 0.2 uses two operational forms:

PIC-X-issued PIC Continuity JWT
→ trusted settled continuity artifact
→ signed by PIC-X
→ contains no pending PIC Continuity Transition JWT

workload-produced candidate PIC Continuity JWT
→ proposes exactly one advancement
→ signed by the workload using the PoR-bound private key
→ carries exactly one proposed PIC Continuity Transition JWT in `continuity_transition_jwt`

PIC-X-issued settled PIC Continuity JWTs contain no continuity_transition_jwt. A workload-produced candidate PIC Continuity JWT contains exactly one continuity_transition_jwt.

Decoded settled PIC Continuity JWT example, shown for readability

{
  "header": {
    "typ": "pic-continuity+jwt",
    "alg": "ES256",
    "kid": "pic-x-es256-2026-08"
  },
  "payload": {
    "iss": "http://127.0.0.1:5556/pic-x",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "sub": "user-123",
    "iat": 1786484040,
    "jti": "urn:uuid:pic-continuity-0",
    "position": 0,

    "context_of_authority": {
      "root": {
        "pca_jwt_hash": "sha256:root-pca-jwt-0",
        "pca_jwt": "<compact-signed-pic-pca-jwt-0>"
      }
    }
  },
  "signature": "base64url-signature"
}

Decoded workload-produced candidate PIC Continuity JWT example, shown for readability

{
  "header": {
    "typ": "pic-continuity+jwt",
    "alg": "ES256",
    "kid": "workload-es256-2026-08"
  },
  "payload": {
    "iss": "https://workload.example.com",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "sub": "user-123",
    "iat": 1786484100,
    "jti": "urn:uuid:pic-continuity-candidate-1",
    "position": 1,

    "context_of_authority": {
      "root": {
        "pca_jwt_hash": "sha256:root-pca-jwt-0",
        "pca_jwt": "<compact-signed-pic-pca-jwt-0>"
      }
    },

    "continuity_transition_jwt": "<compact-signed-continuity-transition-jwt-1>"
  },
  "signature": "base64url-signature"
}

After PIC-X validates a proposed transition and issues the next settled PIC Continuity JWT, the material required to authorize and validate the next transition must remain available according to the selected profile/schema. The exact settled-token location of that current challenge material is intentionally not assigned in this article.

PIC Continuity Transition JWT

Definition URI

None

The current protocol does not define a Definition URI for PIC Continuity Transition JWT. It is currently identified by Media Type and JOSE typ.

Media Type

application/pic-continuity-transition+jwt

JOSE typ

pic-continuity-transition+jwt

Purpose

signed artifact for one proposed continuity advancement

A PIC Continuity Transition JWT is not carried forward after PIC-X accepts the advancement. It is carried only in the workload-produced candidate for the current exchange.

The signing algorithms accepted for workload-signed PIC Continuity Transition JWTs are advertised by PIC-X through continuity.transition_signing_alg_values_supported in the discovery document.

Decoded PIC Continuity Transition JWT example, shown for readability

{
  "header": {
    "typ": "pic-continuity-transition+jwt",
    "alg": "ES256",
    "kid": "workload-es256-2026-08"
  },
  "payload": {
    "iss": "https://workload.example.com",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "iat": 1786484100,
    "jti": "urn:uuid:continuity-transition-1",
    "position": 1,

    "predecessor_hash": "sha256:pic-continuity-jwt-0",

    "challenge": {
      "previous_challenge": "base64url-random-root",
      "next_challenge": "base64url-random-transition-1"
    },

    "attenuations": {
      "principal": {
        "remove_bitmap": "base64url-bitmap"
      },
      "attributes": {
        "remove_bitmap": "base64url-bitmap"
      },
      "invariants": {
        "remove_bitmap": "base64url-bitmap"
      },
      "execution_contract": {
        "additions": [
          ["region", "EU"]
        ]
      }
    },

    "proof_of_relationship": {
      "type": "profile-defined",
      "presentation": "<proof-bound-to-predecessor-and-challenge>"
    }
  },
  "signature": "base64url-signature"
}

Existing execution-contract constraints must not be removed, replaced, or weakened during continuity advancement. Execution-contract restriction is additive: accepted transitions may introduce additional constraints through attenuations.execution_contract.additions, and all existing and newly added constraints are combined with logical AND.

New execution-contract constraints introduced by an accepted transition become additional entries in the materialized/effective execution_contract Indexed Authority Map section after PIC-X validates the transition and issues the next settled continuity state. The signed root PIC PCA JWT is not mutated, and no new PIC PCA JWT is created for the new continuity position.

The workload proposes execution-contract additions as canonical Indexed Authority Map [key, value] tuple entries in attenuations.execution_contract.additions. Each addition contains only the two tuple elements key and value. The workload does not assign a numeric index. Collection additions use the existing denormalized canonical form: for example, logical departments values become separate entries such as ["departments:engineering", true] and ["departments:operations", true].

When one PIC Continuity Transition JWT proposes multiple execution-contract additions, PIC-X validates the proposed additions, denormalizes any collection-valued logical proposal material into individual canonical tuple additions when applicable, sorts accepted additions lexicographically by canonical key using the same Unicode code point ordering defined for initial execution_contract assignment, assigns the next section-local numeric indexes in that sorted order, and then materializes the additions. Input array order is not normative; the same accepted additions materialize to the same canonical ordering for the same predecessor state. The workload is not required to pre-sort additions.

Predecessor and Challenge Semantics

For PIC Profile 0.2, a proposed transition is cryptographically bound to the previous trusted server-issued PIC Continuity JWT being advanced.

trusted PIC Continuity JWT N
        |
        | predecessor_hash = hash(compact PIC Continuity JWT N)
        v
PIC Continuity Transition JWT N+1

The first transition uses the root PIC PCA JWT challenge:

context_of_authority.root.pca_jwt.payload.challenge.next_challenge
=
transition["1"].payload.challenge.previous_challenge

For later transitions, the previous settled continuity artifact must provide the current challenge material required by the selected profile/schema:

trusted PIC Continuity JWT N
→ current continuity challenge material

PIC Continuity Transition JWT N+1
→ challenge.previous_challenge matches that material
→ challenge.next_challenge supplies the next challenge

The exact settled-token location of current challenge material after advancement is intentionally deferred to the selected profile/schema definition.

Workload Candidate Signing

The workload-produced candidate PIC Continuity JWT is signed by the workload.

The workload must use the private key whose corresponding public key or identity is bound or proven by proof_of_relationship in the proposed PIC Continuity Transition JWT.

PIC-X verifies:

candidate outer PIC Continuity JWT signature
+
Proof of Relationship / key binding

and verifies that the candidate signer is the key authorized or bound by the Proof of Relationship for that transition.

Candidate signer binding is part of proof_of_relationship. No additional binding object is defined here.

The candidate is not an independently trusted continuity artifact. It is a signed proposal sent to PIC-X for centralized validation.

Attenuations

Profile 0.2 uses two restriction mechanisms inside attenuations:

attenuations.principal.remove_bitmap
→ removal attenuation
→ remove_bitmap against principal section indexes

attenuations.attributes.remove_bitmap
→ removal attenuation
→ remove_bitmap against attributes section indexes

attenuations.invariants.remove_bitmap
→ removal attenuation
→ remove_bitmap against invariants section indexes

attenuations.execution_contract.additions
→ additive restriction
→ additions array of `[key, value]` tuple constraints
→ PIC-X sorts and assigns indexes after validation
→ all constraints combined with logical AND

Removal attenuation removes entries from the indexed principal, attributes, and invariants sections in the materialized authority state. It must never add authority.

root authority
        |
        v
apply one proposed transition
        |
        v
next authority

For each attenuation, the verifier must ensure:

new authority ⊆ previous authority

In Profile 0.2, attenuations.principal.remove_bitmap, attenuations.attributes.remove_bitmap, and attenuations.invariants.remove_bitmap are interpreted against their own section-local numeric indexes. Removed entries must never reappear later in the same continuity. execution_contract does not use removal bitmaps. Execution-contract restrictions are monotonic additions through attenuations.execution_contract.additions: they add constraints that are combined with logical AND and therefore can only reduce the set of allowed executions.

Proof of Relationship

Proof of Relationship binds one proposed execution transition to its causal predecessor.

In this model, proof_of_relationship is inside each PIC Continuity Transition JWT.

It proves the relationship that led to the proposed authority state and binds the advancement to:

• predecessor_hash
• challenge.previous_challenge
• challenge.next_challenge
• position
• profile-defined holder/key proof

The verifier must be able to validate this proof independently. It must not trust previous verifiers.

Verification

An ordinary verifier of a settled PIC-X-issued PIC Continuity JWT verifies the artifact presented to it:

1. Verify the PIC Continuity JWT signature using the PIC-X issuer keys.
2. Read context_of_authority.root.pca_jwt.
3. Verify context_of_authority.root.pca_jwt as a PIC PCA JWT.
4. Verify that hash(compact context_of_authority.root.pca_jwt) equals context_of_authority.root.pca_jwt_hash.
5. Verify that the token is settled and contains no continuity_transition_jwt.

PIC-X, when processing an advancement candidate, additionally verifies one proposed transition:

1. Verify the previous trusted PIC Continuity JWT N.
2. Verify the workload-produced candidate PIC Continuity JWT outer signature.
3. Verify that the candidate contains exactly one continuity_transition_jwt.
4. Verify the PIC Continuity Transition JWT carried in continuity_transition_jwt.
5. Verify that the candidate signer is the key authorized or bound by proof_of_relationship.
6. Verify predecessor_hash equals hash(compact PIC Continuity JWT N).
7. Verify payload.position equals the previous trusted continuity position + 1.
8. Verify challenge continuity:
   • for the first advancement, challenge.previous_challenge equals context_of_authority.root.pca_jwt.payload.challenge.next_challenge;
   • for later advancements, challenge.previous_challenge equals the current challenge material made available by the previous settled continuity artifact according to the selected profile/schema.
9. Verify proof_of_relationship over predecessor_hash, challenge.previous_challenge, challenge.next_challenge, and position.
10. Apply attenuations.principal.remove_bitmap when present.
11. Apply attenuations.attributes.remove_bitmap when present.
12. Apply attenuations.invariants.remove_bitmap when present.
13. Read attenuations.execution_contract.additions when present.
14. Validate each proposed execution-contract [key, value] tuple.
15. Verify that accepted additions only further restrict execution.
16. Sort accepted additions lexicographically by canonical key.
17. Assign accepted additions their next section-local numeric indexes in that sorted order.
18. Add accepted additions to the materialized/effective execution_contract section.
19. Combine all execution-contract constraints using logical AND.
20. Verify overall authority and non-expansion semantics.
21. Verify revocation and local policy.
22. If validation succeeds, issue PIC Continuity JWT N+1 signed by PIC-X with no continuity_transition_jwt.

Profile 0.2 does not transport multiple prior transitions for independent replay. PIC-X validates each single advancement centrally and issues the next trusted continuity artifact.

Profile 0.2 Continuity Model

ROOT

PCA
→ logical Context of Authority

PIC PCA JWT
→ trusted signed root authority
→ root challenge

SETTLED CONTINUITY

PIC Continuity JWT N
→ issued and signed by PIC-X
→ trusted current continuity artifact
→ binds to the trusted root through `context_of_authority.root`
→ contains no `continuity_transition_jwt`

ADVANCEMENT CANDIDATE

workload creates exactly one PIC Continuity Transition JWT N+1
→ predecessor = previous trusted PIC Continuity JWT N
→ challenge continuity
→ attenuation
→ Proof of Relationship

workload places that one PIC Continuity Transition JWT in a candidate PIC Continuity JWT
→ transition carried in `continuity_transition_jwt`
→ candidate signed using the PoR-bound private key

CENTRAL VALIDATION

candidate
→ PIC-X
→ validate previous trusted continuity
→ validate candidate signer / PoR key relationship
→ validate one transition
→ validate predecessor, challenge, attenuation, execution-contract additions, non-expansion, revocation/policy
→ issue PIC Continuity JWT N+1
→ no `continuity_transition_jwt`

REPEAT

central N
→ one candidate transition
→ central N+1
→ one candidate transition
→ central N+2

References

External References

• RFC 7519 - JSON Web Token (JWT)
• RFC 9068 - JSON Web Token (JWT) Profile for OAuth 2.0 Access Tokens
• PIC Protocol
• OAuth 2.0 Token Exchange

PIC-X Series

• Designing PIC-X: From Specification to Architecture
• Designing PIC-X: Deriving an Initial PIC Context of Authority
• Designing PIC-X: The .well-known Configuration
