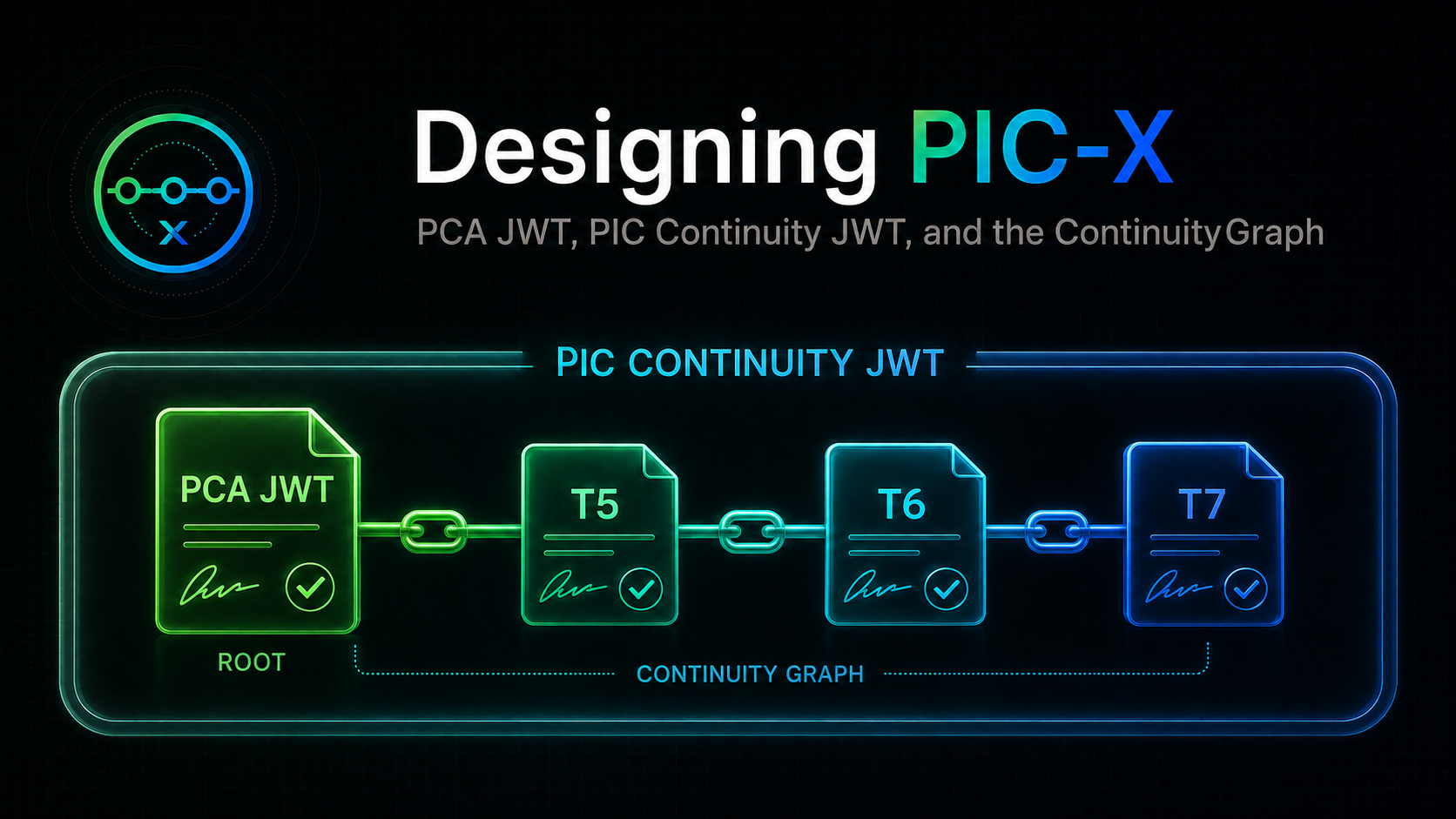

Designing PIC-X: PCA JWT, PIC Continuity JWT, and the Continuity Graph

The previous articles introduced the exchange flow, discovery metadata, and the protocol concepts required to initialize and continue PIC executions.

For context, see Designing PIC-X: From Specification to Architecture to Code , Designing PIC-X: Deriving an Initial PIC Context of Authority , and Designing PIC-X: Exposing Configuration through .well-known/pic-x-configuration .

The active PIC profile is:

https://pic-protocol.org/profiles/0.2

This article defines the canonical JSON/JWT representation for that profile.

Logical Context of Authority
        │
        ▼
Canonical Authority Map
        │
        ▼
PCA JWT
        │
        ▼
PIC Continuity JWT
        │
        ▼
Continuity Graph

The protocol intentionally separates root authority from authority continuity.

A PCA is the logical Context of Authority.

A PCA JWT is the signed root authority representation.

A PIC Continuity JWT transports one Continuity Graph and its root_authority_jwt.

A Continuity Graph starts from a trusted root_authority_jwt and carries a numbered sequence of signed Continuity Transition JWTs when continuity advances.

PIC Artifact Registry

PIC currently defines three JWT artifacts and two Continuity Proposal type identifiers used by the PIC Token Exchange Profile.

Definition URIs are stable semantic protocol identifiers. They identify protocol concepts and are not required to resolve to a retrievable web resource.

This registry maps the identifiers advertised by .well-known/pic-x-configuration to the protocol artifacts defined in this article.

The proposal JSON is transported through the continuity_proposal parameter as compact UTF-8 JSON encoded with unpadded Base64url.

JWT Serialization

PIC Profile 0.2 transports and embeds signed JWT artifacts using compact JWS serialization.

Unless a future profile explicitly defines another serialization, fields ending in _jwt carry the compact signed JWT string.

This applies to:

root_authority_jwt
current_continuity_transition_jwt

The JSON examples in this article are decoded views shown for readability. They are not the normative wire representation.

Artifact hashes over JWT values are computed over the UTF-8 bytes of the compact serialized JWT, not over the decoded JSON view.

For example:

hash(compact root_authority_jwt)

and:

hash(compact current_continuity_transition_jwt)

Future profiles may define additional serializations, including JSON-based serializations, but a verifier must not accept an alternative serialization unless the selected profile explicitly defines it and advertises it.

The profile does not forbid other serializations in future versions. It only makes compact JWS the normative serialization for PIC Profile 0.2. A future profile may define a JSON-based serialization, but that profile must also define how signatures are verified, how hashes are computed, and how embedded artifacts are represented.

Logical and Canonical Authority

The first article shows the Logical Context of Authority as readable application-facing JSON.

When the logical context is serialized for signing, hashing, attenuation, or compact transport, it is transformed into a Canonical Authority Map.

PIC Profile 0.2 represents that canonical form as an Indexed Authority Map.

Logical Context of Authority
→ application-facing readable JSON

Canonical Authority Map
→ canonical serialized authority representation

Indexed Authority Map
→ concrete numbered key/value representation used by this profile

Example Indexed Authority Map:

{
  "principal": {
    "1": {
      "key": "principal:id",
      "value": "user-123"
    },
    "2": {
      "key": "principal:roles:document-manager",
      "value": true
    },
    "3": {
      "key": "principal:groups:document-management",
      "value": true
    },
    "4": {
      "key": "principal:groups:eu-employees",
      "value": true
    }
  },

  "attributes": {
    "1": {
      "key": "attributes:securityDomain",
      "value": "tenant-a"
    }
  },

  "invariants": {
    "1": {
      "key": "documents:read",
      "value": {
        "operation": "read",
        "resourceType": "documents",
        "resourceId": "*"
      }
    },
    "2": {
      "key": "documents:write",
      "value": {
        "operation": "write",
        "resourceType": "documents",
        "resourceId": "*"
      }
    },
    "3": {
      "key": "documents:read:document-42",
      "value": {
        "operation": "read",
        "resourceType": "documents",
        "resourceId": "document-42"
      }
    }
  },

  "contract": {
    "1": {
      "key": "contract:corporation",
      "value": "acme"
    },
    "2": {
      "key": "contract:departments:engineering",
      "value": true
    },
    "3": {
      "key": "contract:departments:operations",
      "value": true
    }
  }
}

PCA JWT

Definition URI

None

The current protocol does not define a Definition URI for PCA JWT. PCA JWT is currently identified by Media Type and JOSE typ.

Media Type

application/pic-pca+jwt

JOSE typ

pic-pca+jwt

Purpose

signed root authority representation

The PCA JWT is signed by a trusted authority.

In the continuity model, the root PCA JWT appears as root_authority_jwt inside the PIC Continuity JWT.

The initial root has no causal predecessor. It carries the root challenge used by the first Continuity Transition JWT.

The example uses a reduced Indexed Authority Map for readability; production PCA JWTs carry the complete canonical map derived from the Logical Context of Authority.

Decoded PCA JWT example, shown for readability

{
  "header": {
    "typ": "pic-pca+jwt",
    "alg": "ES256",
    "kid": "pic-x-es256-2026-08"
  },
  "payload": {
    "iss": "http://127.0.0.1:5556/pic-x",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "sub": "user-123",
    "iat": 1785589400,
    "jti": "urn:uuid:pca-root-4",

    "position": 4,

    "context_of_authority": {
      "format": "indexed-authority-map",
      "value": {
        "principal": {
          "1": {
            "key": "principal:id",
            "value": "user-123"
          },
          "2": {
            "key": "principal:roles:document-manager",
            "value": true
          }
        },
        "attributes": {
          "1": {
            "key": "attributes:securityDomain",
            "value": "tenant-a"
          }
        },
        "invariants": {
          "1": {
            "key": "documents:write",
            "value": {
              "operation": "write",
              "resourceType": "documents",
              "resourceId": "*"
            }
          }
        },
        "contract": {
          "1": {
            "key": "contract:corporation",
            "value": "acme"
          }
        }
      }
    },

    "challenge": {
      "next_challenge": "base64url-random-root"
    }
  },
  "signature": "base64url-signature"
}

PIC Continuity JWT

Definition URI

https://pic-protocol.org/definitions/token-types/continuity

Media Type

application/pic-continuity+jwt

JOSE typ

pic-continuity+jwt

Purpose

transports one Continuity Graph and its root_authority_jwt

The PIC Continuity JWT remains the artifact returned by the exchange endpoint and transported across execution boundaries.

In centralized exchange, the PIC Continuity JWT is returned by the exchange endpoint. Across continuity modes, it is the signed transport artifact for Proof of Continuity.

The signer of the outer PIC Continuity JWT is not necessarily the authority issuer in every continuity mode. The authority root remains root_authority_jwt, signed by the trusted authority issuer.

In a PIC Continuity JWT, context_of_authority does not contain the full current authority state. It identifies the trusted root authority artifact from which the current authority is materialized.

Decoded PIC Continuity JWT example, shown for readability

{
  "header": {
    "typ": "pic-continuity+jwt",
    "alg": "ES256",
    "kid": "pic-x-es256-2026-08"
  },
  "payload": {
    "iss": "http://127.0.0.1:5556/pic-x",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "sub": "user-123",
    "iat": 1786484040,
    "jti": "urn:uuid:pic-continuity-current-7",

    "context_of_authority": {
      "position": 4,
      "root_authority_hash": "sha256:root-authority-jwt-4",
      "root_authority_jwt": "<compact-signed-pic-pca-jwt>"
    },

    "continuity_graph": {
      "current_position": 7,
      "current_authority_hash": "sha256:current-authority-7",

      "transitions": {
        "5": {
          "current_continuity_transition_hash": "sha256:transition-5",
          "current_continuity_transition_jwt": "<compact-signed-continuity-transition-jwt-5>"
        },
        "6": {
          "current_continuity_transition_hash": "sha256:transition-6",
          "current_continuity_transition_jwt": "<compact-signed-continuity-transition-jwt-6>"
        },
        "7": {
          "current_continuity_transition_hash": "sha256:transition-7",
          "current_continuity_transition_jwt": "<compact-signed-continuity-transition-jwt-7>"
        }
      }
    }
  },
  "signature": "base64url-signature"
}

current_authority_hash is not stored inside each Continuity Transition JWT. It is the final authority hash declared by the PIC Continuity JWT and verified after materializing the authority from root_authority_jwt plus all valid transitions.

root_authority_hash and current_authority_hash belong to different hash domains.

root_authority_hash is an artifact hash: it is the hash of the compact root_authority_jwt.

current_authority_hash is an authority-state hash: it is the hash of the materialized Canonical Authority Map after applying all valid transitions.

They are not directly comparable. The verifier uses root_authority_hash to authenticate the root artifact and current_authority_hash to verify the final materialized authority state.

For PIC Profile 0.2, current_authority_hash equals the hash of the materialized Canonical Authority Map after all valid attenuations have been applied.

Continuity Graph

The Continuity Graph starts from a trusted root_authority_jwt and carries a numbered sequence of signed Continuity Transition JWTs when continuity advances. Each transition proves causal continuity from its predecessor and may attenuate the authority represented by the root authority.

PIC Continuity JWT
├── context_of_authority
│   ├── position
│   ├── root_authority_hash
│   └── root_authority_jwt
└── continuity_graph
    ├── current_position
    ├── current_authority_hash
    └── transitions
        └── numbered Continuity Transition JWT wrappers

continuity_graph
├── current_position
├── current_authority_hash
└── transitions
    ├── "5"
    │   ├── current_continuity_transition_hash
    │   └── current_continuity_transition_jwt
    ├── "6"
    │   ├── current_continuity_transition_hash
    │   └── current_continuity_transition_jwt
    └── "7"
        ├── current_continuity_transition_hash
        └── current_continuity_transition_jwt

Transition keys are decimal strings. Verification order is numeric ascending order, not lexical order.

The rule is simple: transition positions must be contiguous.

For a graph with transitions, the first transition position must equal context_of_authority.position + 1.

For every later transition, the current transition position must equal the previous transition position + 1.

No gaps are allowed.

For example, if the root position is 4, then the valid transition positions are 5, 6, 7, and so on. A transitions map containing “5” and “7” without “6” is invalid.

The root position is context_of_authority.position. current_position must equal the last transition position.

Initial Continuity Graph

The initial PIC Continuity JWT may contain no transitions.

In this case, transitions is empty.

In that case:

• context_of_authority.position is the root position;
• continuity_graph.current_position equals context_of_authority.position;
• continuity_graph.transitions is empty;
• continuity_graph.current_authority_hash equals the hash of the root PCA JWT’s Canonical Authority Map;
• no Continuity Transition JWT is required yet;
• the root PCA JWT challenge initializes the first future transition.

{
  "context_of_authority": {
    "position": 0,
    "root_authority_hash": "sha256:root-authority-jwt-0",
    "root_authority_jwt": "<compact-signed-pic-pca-jwt-0>"
  },
  "continuity_graph": {
    "current_position": 0,
    "current_authority_hash": "sha256:authority-map-0",
    "transitions": {}
  }
}

Continuity Transition JWT

Definition URI

None

Media Type

application/pic-continuity-transition+jwt

JOSE typ

pic-continuity-transition+jwt

Purpose

signed continuity transition embedded in the Continuity Graph

A Continuity Transition JWT is a signed transition artifact embedded inside the PIC Continuity JWT. It is not the same as the PIC Continuity JWT.

The signing algorithms supported for Continuity Transition JWTs are advertised by PIC-X through continuity.transition_signing_alg_values_supported in the discovery document.

Decoded Continuity Transition JWT example, shown for readability

{
  "header": {
    "typ": "pic-continuity-transition+jwt",
    "alg": "ES256",
    "kid": "pic-x-es256-2026-08"
  },
  "payload": {
    "iss": "http://127.0.0.1:5556/pic-x",
    "profile": "https://pic-protocol.org/profiles/0.2",
    "iat": 1786484100,
    "jti": "urn:uuid:continuity-transition-5",

    "position": 5,

    "predecessor_hash": "sha256:root-authority-jwt-4",

    "challenge": {
      "previous_challenge": "base64url-random-root",
      "next_challenge": "base64url-random-transition-5"
    },

    "attenuations": {
      "principal": {
        "remove_bitmap": "base64url-bitmap"
      },
      "attributes": {
        "remove_bitmap": "base64url-bitmap"
      },
      "invariants": {
        "remove_bitmap": "base64url-bitmap"
      },
      "contract": {
        "remove_bitmap": "base64url-bitmap"
      }
    },

    "proof_of_relationship": {
      "type": "profile-defined",
      "presentation": "<proof-bound-to-previous-and-next-challenge>"
    }
  },
  "signature": "base64url-signature"
}

Predecessor Hash Rules

For the first transition after the root authority, predecessor_hash equals context_of_authority.root_authority_hash. For every later transition, predecessor_hash equals the previous transition’s current_continuity_transition_hash.

transition["5"].payload.predecessor_hash
=
context_of_authority.root_authority_hash

For later transitions:

transition["6"].payload.predecessor_hash
=
transition["5"].current_continuity_transition_hash

The transition hash is always:

hash(compact current_continuity_transition_jwt) = current_continuity_transition_hash

Attenuations

Attenuations are represented compactly.

attenuations
├── principal
├── attributes
├── invariants
└── contract

Each section may use remove_bitmap.

{
  "attenuations": {
    "principal": {
      "remove_bitmap": "base64url-bitmap"
    },
    "attributes": {
      "remove_bitmap": "base64url-bitmap"
    },
    "invariants": {
      "remove_bitmap": "base64url-bitmap"
    },
    "contract": {
      "remove_bitmap": "base64url-bitmap"
    }
  }
}

Each attenuation bitmap is interpreted against the corresponding Indexed Authority Map section.

The selected profile defines bitmap ordering, base64url encoding, canonicalization, and hashing.

Proof of Relationship

Proof of Relationship binds one execution transition to its causal predecessor.

In this model, proof_of_relationship is inside each Continuity Transition JWT.

It binds:

• predecessor_hash
• challenge.previous_challenge
• challenge.next_challenge
• position
• profile-defined holder/key proof

The verifier must be able to validate this proof independently. It must not trust previous verifiers.

Key binding is part of proof_of_relationship.

When a future profile allows holder-signed PIC Continuity JWTs, the relationship between the outer PIC Continuity JWT signing key and proof_of_relationship is defined by that continuity profile. PIC Profile 0.2 does not define delegated holder-signing keys in this article.

Verification

1. Verify the PIC Continuity JWT signature according to the signer acceptance rules of the selected continuity mode.
2. Read context_of_authority.root_authority_jwt.
3. Verify the root_authority_jwt as a PCA JWT.
4. Verify that hash(compact root_authority_jwt) equals context_of_authority.root_authority_hash.
5. Extract the root position, root challenge, and root Canonical Authority Map from the PCA JWT.
6. Materialize the root Canonical Authority Map.
7. If continuity_graph.transitions is empty:
   • verify continuity_graph.current_position equals context_of_authority.position;
   • verify continuity_graph.current_authority_hash equals the hash of the root Canonical Authority Map;
   • stop transition verification successfully.
8. If continuity_graph.transitions is not empty:
   • sort continuity_graph.transitions by numeric key;
   • verify that transition positions are contiguous;
   • verify that the first transition position equals context_of_authority.position + 1.
9. For each transition:
   • verify the Continuity Transition JWT signature;
   • verify hash(compact transition JWT) equals current_continuity_transition_hash;
   • verify payload.position equals the numeric transition key;
   • verify predecessor_hash equals context_of_authority.root_authority_hash for the first transition;
   • verify predecessor_hash equals the previous transition’s current_continuity_transition_hash for later transitions;
   • verify the first transition’s challenge.previous_challenge equals root_authority_jwt.payload.challenge.next_challenge;
   • verify every later transition’s challenge.previous_challenge equals the previous transition’s challenge.next_challenge;
   • verify proof_of_relationship over predecessor_hash, challenge.previous_challenge, challenge.next_challenge, and position;
   • apply attenuations to the materialized Canonical Authority Map;
   • verify non-expansion of authority.
10. Verify continuity_graph.current_position equals the last transition position.
11. Verify that continuity_graph.current_authority_hash equals the hash of the materialized Canonical Authority Map after all valid attenuations have been applied.

Continuity Modes

The central PIC-X authority issues the initial PCA JWT. That PCA JWT becomes the root_authority_jwt.

After that, continuity may be advanced through the selected continuity mode.

In centralized continuity, PIC-X validates and issues the next PIC Continuity JWT.

In decentralized continuity, other nodes may be allowed to produce Continuity Transition JWTs and update the Continuity Graph according to profile rules.

This is why PCA JWT cannot replace PIC Continuity JWT as the only artifact. PCA JWT is the signed root authority artifact. PIC Continuity JWT is the transport artifact that carries the root and the Continuity Graph.

This article defines the common artifacts only. The detailed rules for central-issued continuity, holder-signed subchains, proof_of_relationship-bound outer signatures, maximum subchain length, consecutive holder-key reuse, central re-issue, compaction, and snapshot / re-root behavior are deferred to a dedicated continuity-mode article.

References

External References

• RFC 7519 — JSON Web Token (JWT)
• RFC 9068 — JSON Web Token (JWT) Profile for OAuth 2.0 Access Tokens
• PIC Protocol
• PIC Prover and Verifier Specification

PIC-X Series

• Designing PIC-X: From Specification to Architecture to Code
• Designing PIC-X: Deriving an Initial PIC Context of Authority
• Designing PIC-X: Exposing Configuration through .well-known/pic-x-configuration
